| Product name: | Broken bridge casement window |
| Producing area: | China mainland |
Material: | Aluminum frame with glass and ss hardware |
Size: | Customizable |
Production time: | 20-30 days |
Package: | Wood frame or plywood frame |
| Thermal insulation: | class 5-6 ( 3.2/2.8/2.0W/M.K) (GB/T8484-2008) |
| Wind pressure resistance: | class 5 KPa ( GB/7106-2008 ) |
| Water tightness: | Grade 5 Pa ( GB/7108-2008 ) |
| Air tightness: | level 6 (m/m.h) ( GB/T7107-2008 ) |
| Sound insulation performance: | 3-6 class 32-45dB ( GB/T8485-2008 ) |
Glass purchase: | Insulating double glass ( 6G+12A+6G),can be equipped with 5x 12mm decorative grids |
Other options: | King Kong mesh screen (select 304L stainless steel) | fixed or up and down screen |

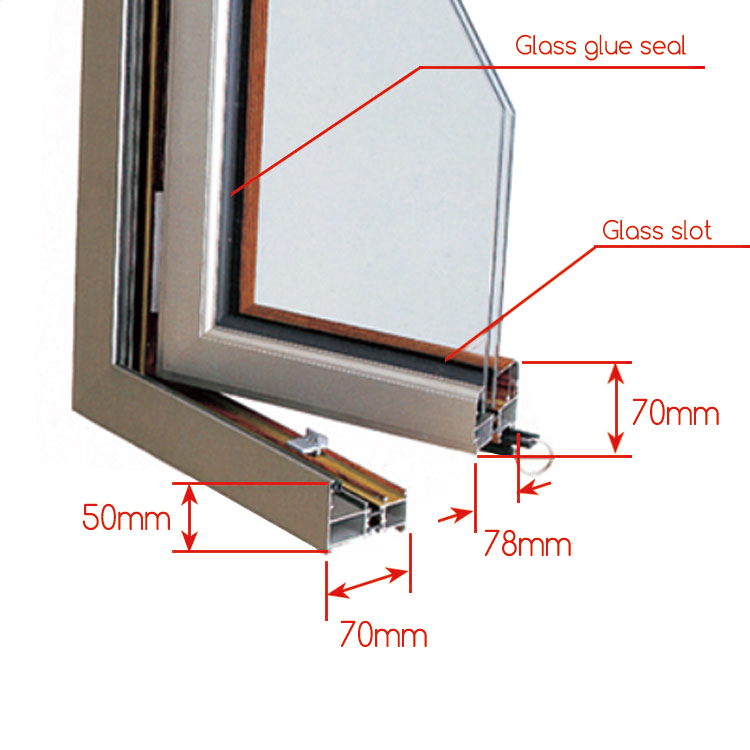

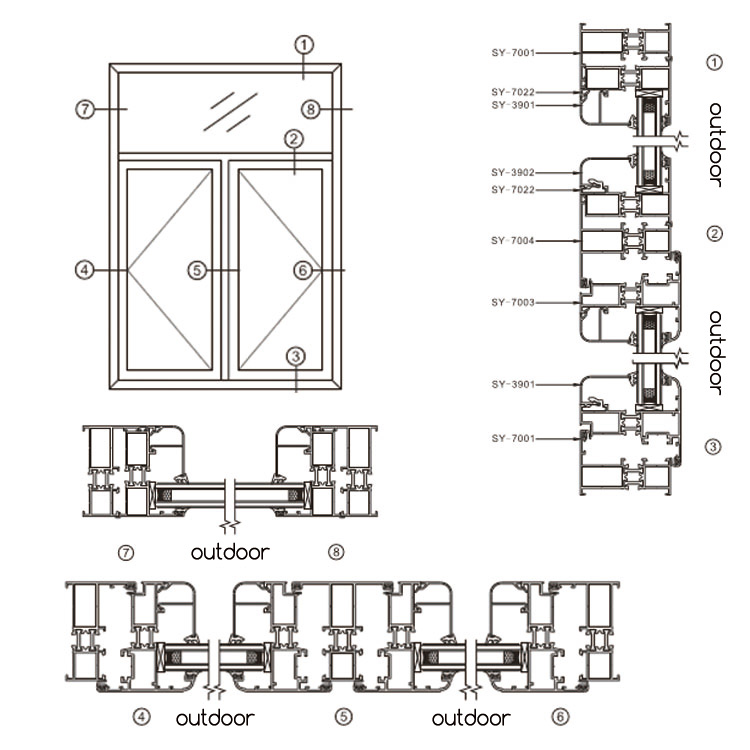

| Description: | This series of heat-insulating broken bridges, with a frame thickness of 70, can effectively heat and sound insulation. The net size of the opening fan is not more than 500-850mm in width and 1200-1800mm in height. The main wall thickness is 14mm, the window frame thickness is 70mm, and the window sash is 78mm. 45 degree splicing, can also be conjoined. |
Color
more require please contact US
| Product name: | Broken bridge casement window |
| Producing area: | China mainland |
Material: | Aluminum frame with glass and ss hardware |
Size: | Customizable |
Production time: | 20-30 days |
Package: | Wood frame or plywood frame |
| Thermal insulation: | class 5-6 ( 3.2/2.8/2.0W/M.K) (GB/T8484-2008) |
| Wind pressure resistance: | class 5 KPa ( GB/7106-2008 ) |
| Water tightness: | Grade 5 Pa ( GB/7108-2008 ) |
| Air tightness: | level 6 (m/m.h) ( GB/T7107-2008 ) |
| Sound insulation performance: | 3-6 class 32-45dB ( GB/T8485-2008 ) |
Glass purchase: | Insulating double glass ( 6G+12A+6G),can be equipped with 5x 12mm decorative grids |
Other options: | King Kong mesh screen (select 304L stainless steel) | fixed or up and down screen |
| Description: | This series of heat-insulating broken bridges, with a frame thickness of 70, can effectively heat and sound insulation. The net size of the opening fan is not more than 500-850mm in width and 1200-1800mm in height. The main wall thickness is 14mm, the window frame thickness is 70mm, and the window sash is 78mm. 45 degree splicing, can also be conjoined. |
Color
more require please contact US
